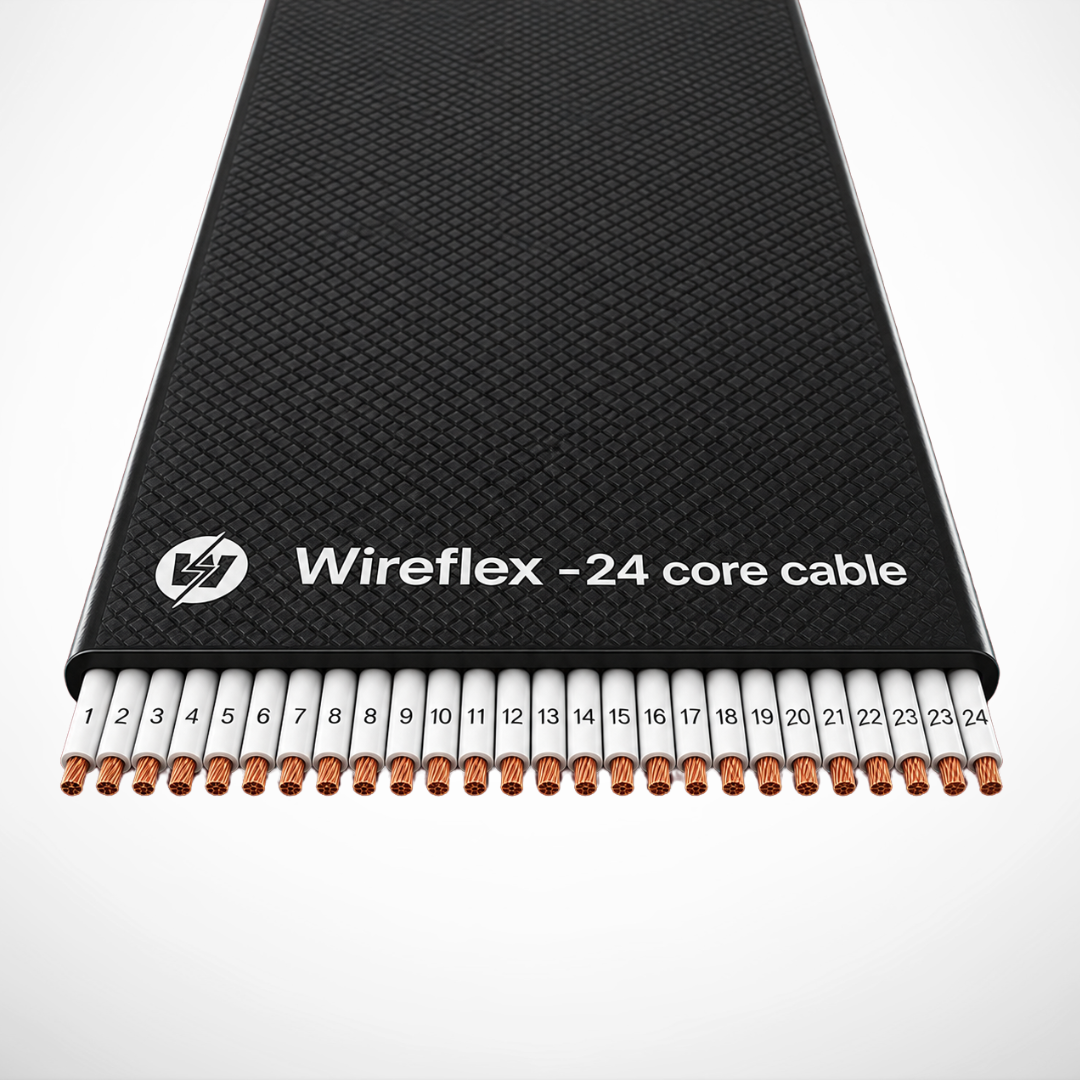

24 Core Elevator Flat Travelling Cable

Wireflex 24 Core Elevator Flat Travelling Cable is specially designed for elevators, lifts, and moving applications requiring continuous flexing and reliable signal transmission. Manufactured with high-quality copper conductors and durable PVC insulation, it offers excellent flexibility, tensile strength, and long service life, ensuring smooth and dependable elevator operation.

Application & Construction

Elevator cables are used for signaling and communication purposes in elevators.

Sizes: 0.50 mm², 0.75 mm², 1.00 mm², 1.50 mm², 2.50 mm², 4.00 mm²
Conductor: Annealed electrolytic flexible conductor (Class 5)
Insulation: PVC (NBR Blend)
Coding: White PVC cores with numbering (earth: yellow/green)
Sheath: PVC Black or Grey (NBR Blend)
Support: Steel wire supports placed symmetrically

Technical Performance

300/500V

≤ 1.00 mm²

450/750V

≥ 1.50 mm²

2000V

Test Voltage

4 m/s

Max Speed

45 m

Suspension Length

80 m

Travelling Height

Environment

-15°C

+70°C

Operating temperature range

Bending Radius: Cable thickness × 10 (Min)

Standard Packing

100m coil, 250m coil, 500m drum, 1000m drum or as per requirement

Notes

Data is indicative and may change without prior notice
Manufacturer not liable for incorrect application
